Beschreibung

Technische Spezifikationen

E-bike

Akku
840Wh battery

Display/Lenkerfernbedienung
Mastermind TCU, 2.2″ high resolution screen, fully customizeable with Specialized app, works with Apple Find My

Motor

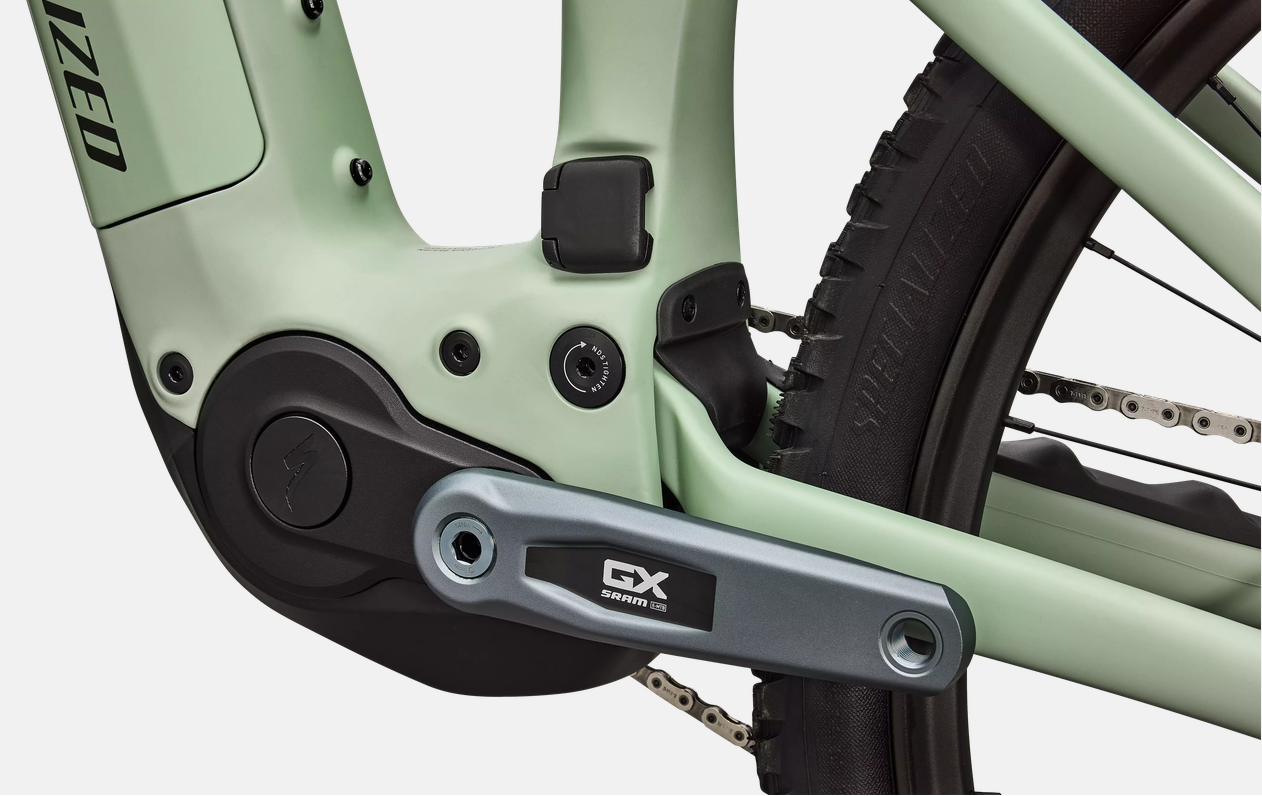

Specialized 3.1 Motor, 101Nm torque, 666W power

Ladegerät
Specialized 4amp charger

Rahmenset

Sattelklemme
Alloy, 38.6mm

Rahmen
FACT 11m Carbon, SWAT downtube storage, 12x148mm UDH compatible rear dropout, side entry battery, adjustable geometry, 130mm of travel

Gabel
FOX 36 SL Performance Elite, GRIP X Damper, HSC, LSC, LSR adjust, 140mm travel, 44mm offset, 15x110mm

Fahrwerk

Dämpfer

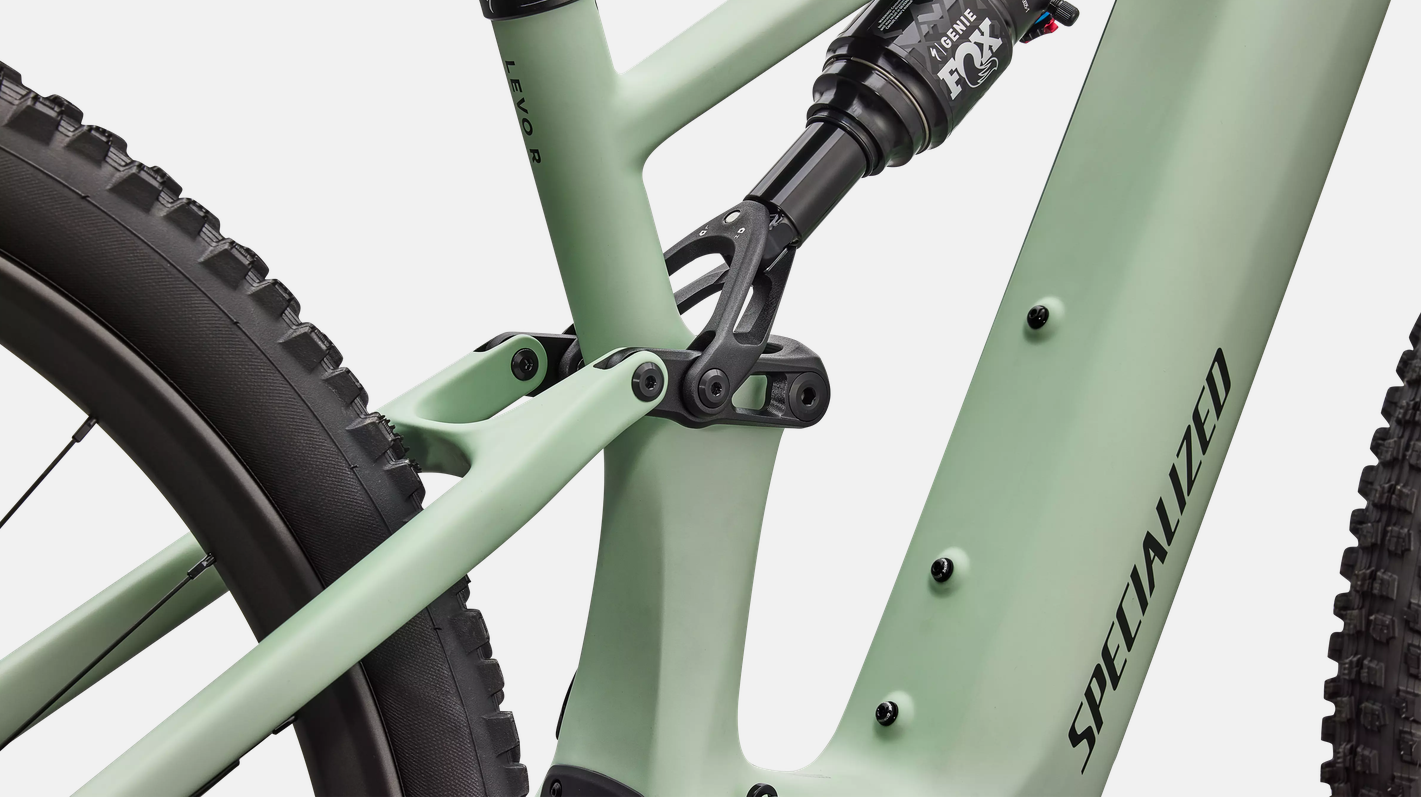

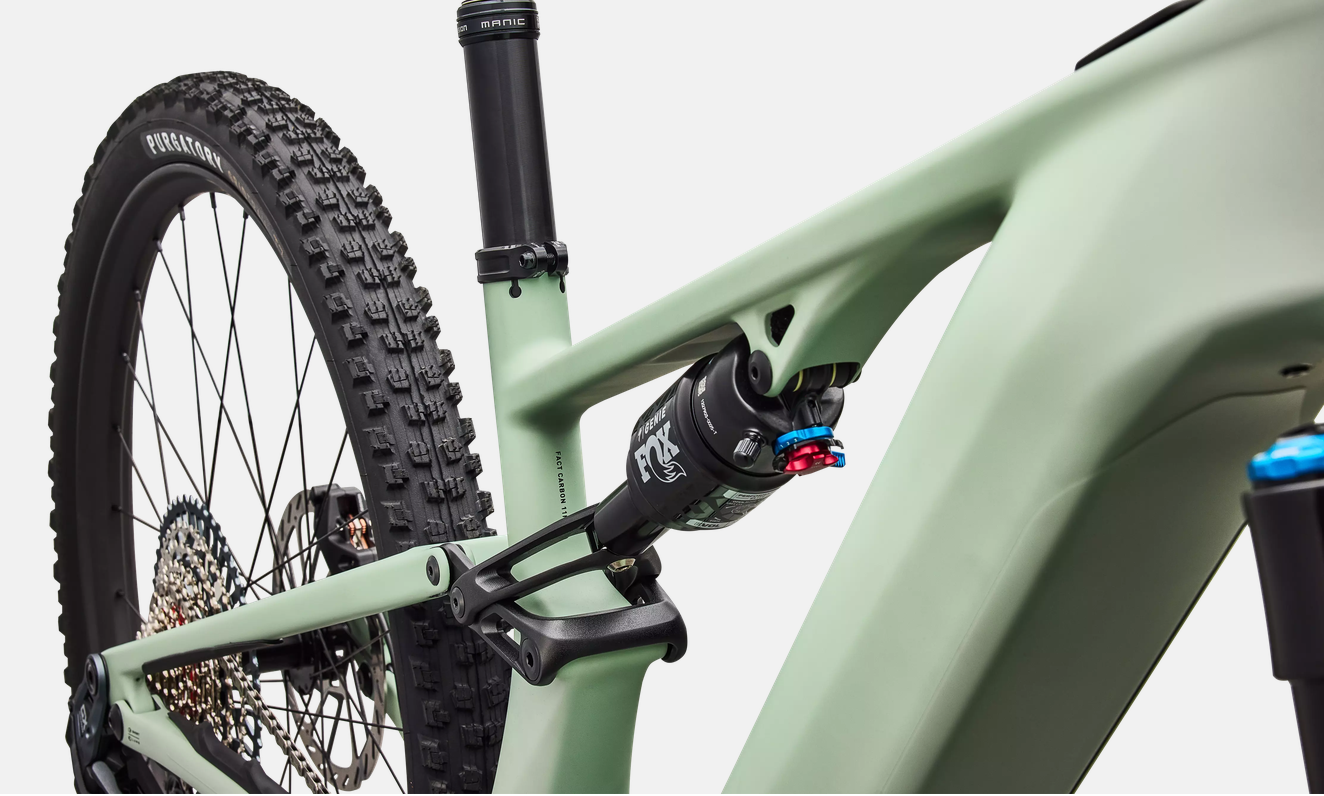

FOX FLOAT Performance Elite GENIE, Ride Dynamics Developed, 2-position compression adjust, 190x45mm

Bremsen

Vorderradbremse
SRAM Motive Bronze, 4-piston caliper, hydraulic disc, 200mm rotor

Hinterradbremse
SRAM Motive Bronze, 4-piston caliper, hydraulic disc, 200mm rotor

Antrieb

Kettenblätter
SRAM 34t T-Type chainring, 104 BCD, steel

Schalthebel
SRAM AXS POD Controller

Kurbelgarnitur
SRAM GX Alloy Crank, ISIS interface, 55mm chainline, 160mm

Schaltwerk
SRAM GX Eagle AXS Transmission

Kette
SRAM GX Eagle Transmission 12-Speed Flattop Chain

Kassette
SRAM GX Transmission, XS 1275, 10-52t

Laufräder

Hinterrad
Roval Traverse SL II Rim, hookless carbon, 30mm inner width, tubeless ready, 29″, Industry 9 1/1 Hub, 12x148mm, 32H, Sapim D-Light Spokes

Vorderrad
Roval Traverse SL II Rim, hookless carbon, 30mm inner width, tubeless ready, 29″, Industry 9 1/1 Hub, 15x110mm, 28H, Sapim D-Light Spokes

Vorderreifen
Specialized Purgatory, GRID Casing, T9 Compound, 29×2.4

Hinterreifen
Specialized Purgatory, Grid Trail Casing, T7 Compound, 29×2.4 (S1 27.5×2.4)

Schläuche
Standard, Presta Valve

Cockpit

Vorbau
Alloy Trail Stem, 35mm bar bore

Sattel
Body Geometry Power Comp, steel rails

Lenker
Specialized Alloy, 30mm/40mm rise, 35mm, 800mm wide

Lenkergriffe
Specialized Trail Grips

Sattelstütze
X-Fusion Manic, 34.9, S1-S2: 125mm, S3: 150mm, S4: 170mm, S5-S6: 190mm Travel, 0mm offset

Zubehör

SWAT™
SWAT internal downtube storage

Produktdetails

Konformitätszertifikat
As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)

Gewicht

Gewicht
21.76 kg (47 lb, 15.6 oz)

Produkt-ID
293744

Gemessene Rahmengröße
S3
